T-section UHMWPE bonded to a structural steel U-channel. The steel substrate carries the load while the UHMWPE wear surface delivers ultra-low-friction chain guidance.

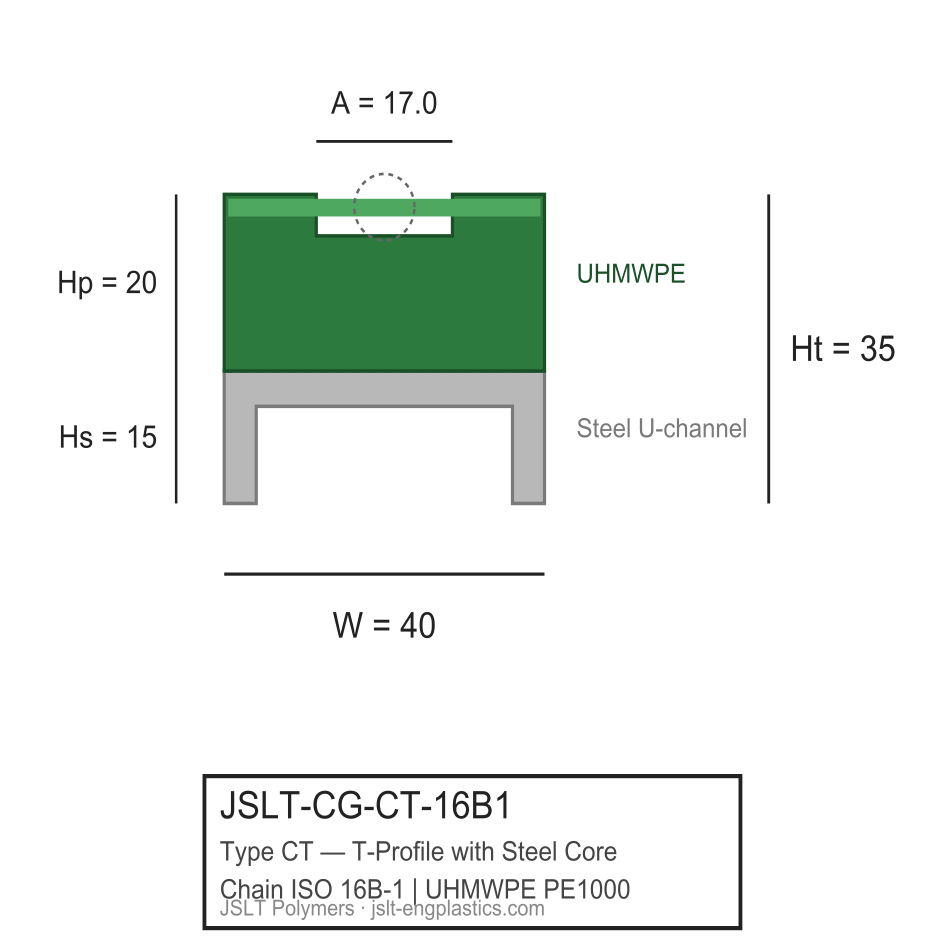

Cross-section — all dimensions in mm. Drawn to 1:1 scale (within page width).
Spans long unsupported runs without sag; ideal for retrofit installations where existing frames cannot accommodate full-height plastic guides.
ANSI 80 / ISO 16B-1 — drop-in replacement for steel-only guides.
CNC-milled groove with R-radius transitions, surface roughness Ra ≤ 1.6 µm typical. Polished groove option available for sticky-product lines.
| JSLT Part Number | JSLT-CG-CT-16B1 |
|---|---|
| Profile Type | Type CT — T-Profile with Steel Core |
| Chain Standard | ISO 16B-1 / ANSI equivalent |
| Chain Pitch | 25.4 mm |
| Number of Rows | 1 |
| Overall width (mm) | 40 mm |
| Total height incl. steel core (mm) | 35 mm |
| UHMWPE wear-strip height (mm) | 20 mm |
| Chain groove width (mm) | 17.0 mm |
| Chain groove depth (mm) | 4.7 mm |
| Steel U-channel wall thickness (mm) | 4 mm |
| Standard Lengths | 1000 / 2000 / 3000 / 4000 / 5000 / 6000 mm |
| Default Stock Length | 2000 mm |
| Custom Length | Cut to your drawing — no extra cost |
| MOQ | 1 piece (sample) — no minimum on production runs |
| Lead Time | 5–15 days from drawing approval |
All four UHMWPE grades are stocked in-house. Default for this profile is highlighted.
Send your DWG / DXF / PDF / STEP — we quote in 24 hours, MOQ 1 piece, lead time 5–15 days.
Standard hole patterns, counterbores, end chamfers, mitre cuts, and curved guide segments are all routine — no setup fee on first articles. Send a sketch, photo or full 3D STEP file and we will return a fully-quoted spec sheet within one working day.
Use the 3D preview file to validate fit in your assembly. Production files (DXF / STEP) are released after we confirm tolerances together.
