JSLT-CG-T-16B1

Type T — Single Row Chain Guide
for ISO 16B-1 Roller Chain

Name: JSLT-CG-T-16B1 Type T — Single Row Chain Guide for ISO 16B-1
Brand: JSLT Polymers
SKU: JSLT-CG-T-16B1
Availability: InStock

Single-row T-profile with one centred chain groove. The most widely-used UHMWPE chain guide profile worldwide. Bolts directly onto conveyor frames; chain runs in the milled groove.

UHMWPE PE1000 ✓ FDA 21 CFR 177.1520 CNC Made-to-Drawing MOQ 1 piece

Get Quote in 24 Hours Download CAD Files

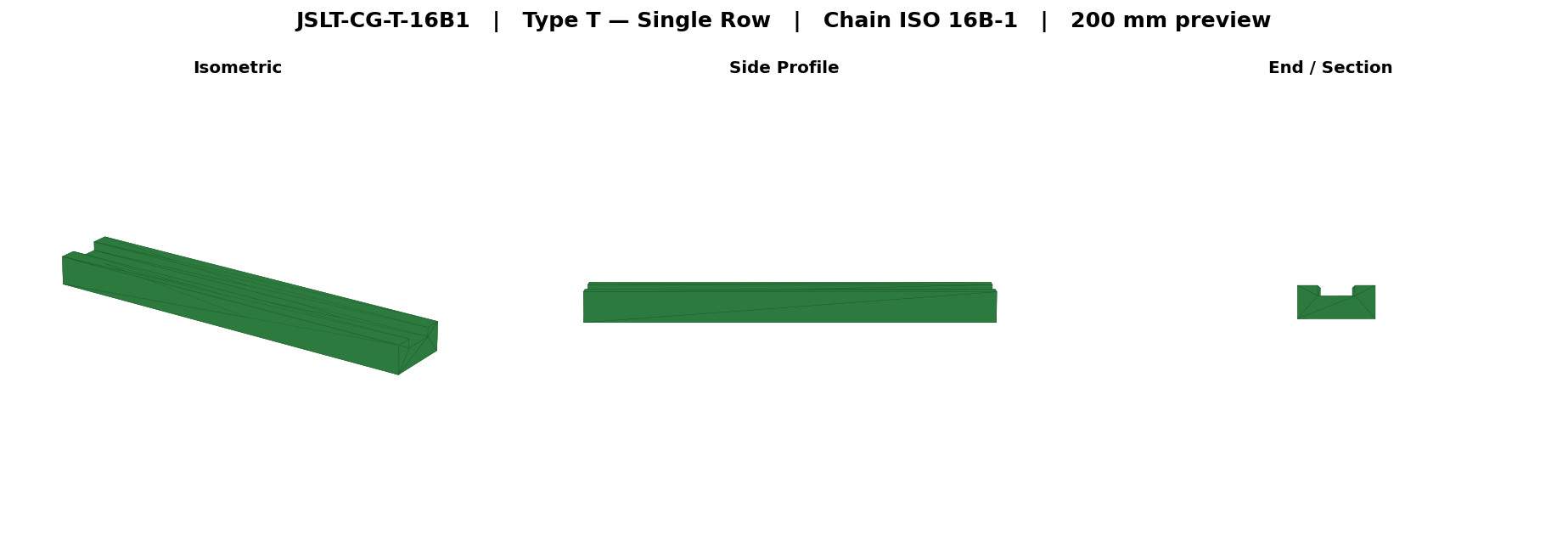

🖱 Drag to rotate · Scroll to zoom · 200 mm preview length (full lengths up to 6000 mm)

Profile & Cross-Section

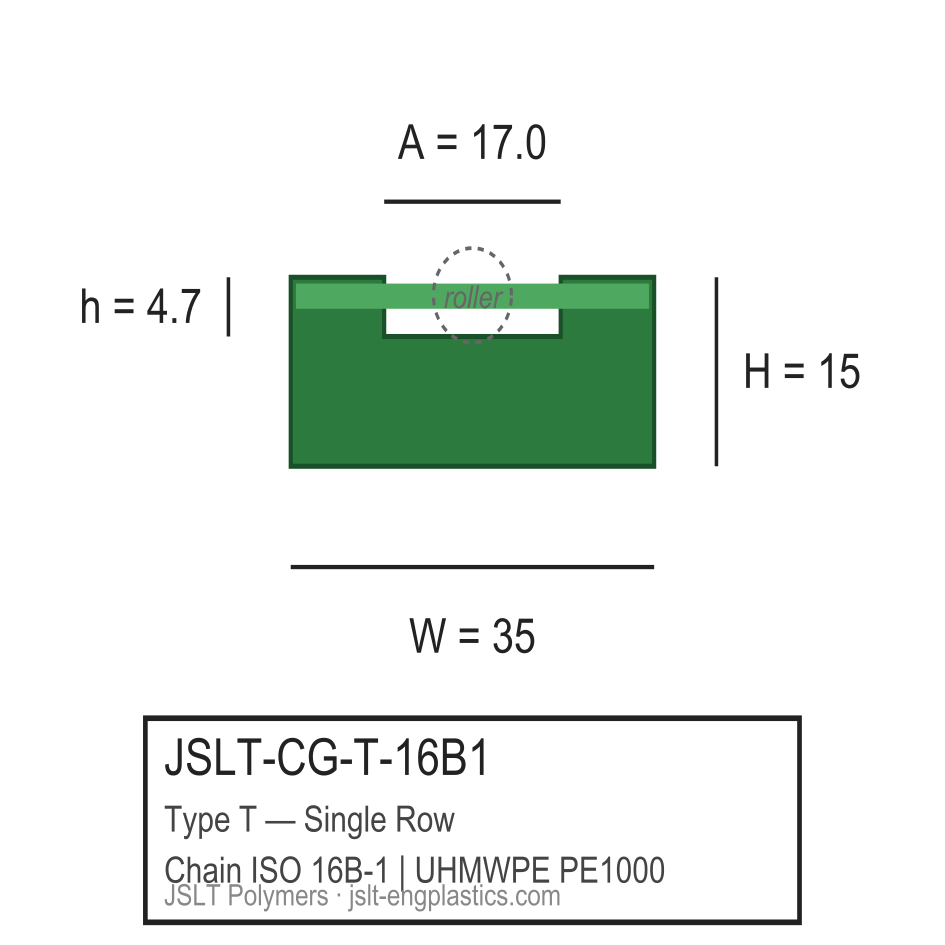

Cross-section — all dimensions in mm. Drawn to 1:1 scale (within page width).

Why this profile?

Universal fit, lowest cost per metre, easy field replacement.

Chain compatibility

ANSI 80 / ISO 16B-1 (1" pitch) — fits ANSI #80 roller chains.

Surface finish

CNC-milled groove with R-radius transitions, surface roughness Ra ≤ 1.6 µm typical. Polished groove option available for sticky-product lines.

Full Specifications

JSLT Part Number	JSLT-CG-T-16B1
Profile Type	Type T — Single Row
Chain Standard	ISO 16B-1 / ANSI equivalent
Chain Pitch	25.4 mm
Number of Rows	1
Overall width (mm)	35 mm
Overall height (mm)	15 mm
Chain groove width (mm)	17.0 mm
Chain groove depth (mm)	4.7 mm
Edge radius (mm)	2 mm
Standard Lengths	1000 / 2000 / 3000 / 4000 / 5000 / 6000 mm
Default Stock Length	2000 mm
Custom Length	Cut to your drawing — no extra cost
MOQ	1 piece (sample) — no minimum on production runs
Lead Time	5–15 days from drawing approval

Material Options

All four UHMWPE grades are stocked in-house. Default for this profile is highlighted.

RECOMMENDED

PE1000

UHMWPE PE1000 (Standard)

MW: 3.5 million g/mol
Color: Industrial Green / Natural White / Black
Temp: -200°C to +80°C
Use: General conveyor wear surfaces

PE-UHMW-AS

UHMWPE Anti-Static

MW: 3.5 million g/mol
Color: Black
Temp: -100°C to +80°C
Resistivity: 10⁶–10⁹ Ω
Use: Electronics / explosion-proof zones

PE-UHMW-FG

UHMWPE Food Grade (FDA 21 CFR 177.1520)

MW: 3.5 million g/mol
Color: Natural White / Blue (detectable)
Temp: -200°C to +80°C
Certs: SGS, CTB FDA 21 CFR 177.1520
Use: Beverage / dairy / bakery / meat

PE-UHMW-9M

UHMWPE Premium 9M+

MW: 9 million g/mol
Color: Industrial Green / Natural
Temp: -200°C to +90°C
Use: High-speed / heavy-load mining & sugar

✓

FDA 21 CFR 177.1520 — Food-Contact Compliant Independently certified by CTB Laboratory for direct food contact, beverage filling, dairy and meat-processing applications. Food-Grade variant (PE-UHMW-FG) is available as a drop-in for any of the dimensions on this page. Certificate provided with shipment on request.

Manufacturing & Custom Fabrication

Full in-house process — every part of your order stays under one roof

Send your DWG / DXF / PDF / STEP — we quote in 24 hours, MOQ 1 piece, lead time 5–15 days.

STEP 01

UHMWPE Production

STEP 02

CNC Cutting

STEP 03

Drilling & Countersinking

STEP 04

CNC Milling (Profile)

STEP 05

Made-to-Drawing Customisation

Standard hole patterns, counterbores, end chamfers, mitre cuts, and curved guide segments are all routine — no setup fee on first articles. Send a sketch, photo or full 3D STEP file and we will return a fully-quoted spec sheet within one working day.
